Introduction

ggplot2 is awesome! However, some of its defaults are … undesirable and ugly. MKHthemes provides ways to improve ggplot2 graphs. By default, MKHthemes provides more pleasing graphs than ggplot2, and it includes a few options to tweak graphs easily.

The package contains only one function, xy_theme(). By default, xy_theme() looks great. Arguments provide easy ways to adjust commonly needed but esoteric settings that are hidden deep within ggplot2. This vignette describes the function xy_theme() and its arguments.

Sample data

Here is a data frame for the examples that follow. It contains descenders for facet labels, to ensure the labels are positioned correctly.

df <- tibble::tribble(~x, ~y, ~EorX,     ~Country,
                       1,  2, "Energy",  "Georgia",
                       2,  3, "Energy",  "Georgia",
                       4,  5, "Exergy",  "Georgia",
                       6,  7, "Exergy",  "Georgia",
                      11, 12, "Energy",  "Fiji",
                      12, 13, "Energy",  "Fiji",
                      14, 15, "Exergy",  "Fiji",
                      16, 17, "Exergy",  "Fiji")
df
#> # A tibble: 8 × 4
#>       x     y EorX   Country
#>   <dbl> <dbl> <chr>  <chr>
#> 1     1     2 Energy Georgia
#> 2     2     3 Energy Georgia
#> 3     4     5 Exergy Georgia
#> 4     6     7 Exergy Georgia
#> 5    11    12 Energy Fiji
#> 6    12    13 Energy Fiji
#> 7    14    15 Exergy Fiji
#> 8    16    17 Exergy Fiji

A first example

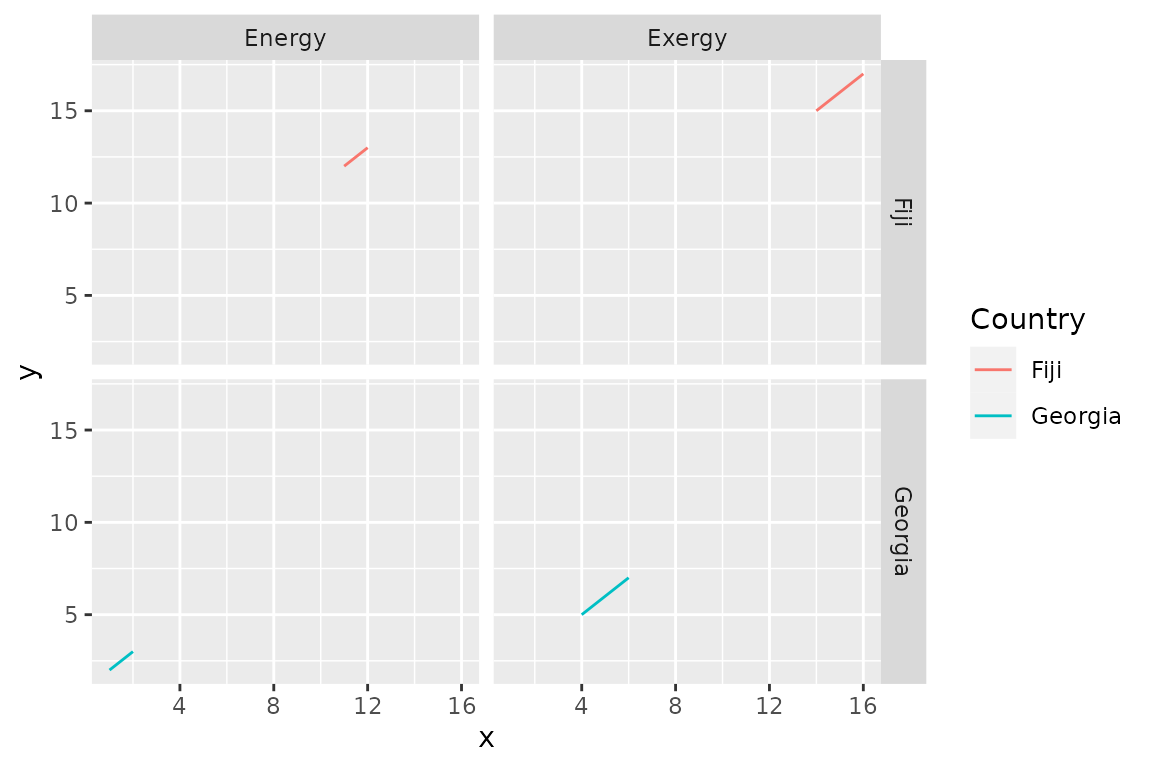

The default settings for ggplot2 give the following graph.

p <- df |>
  ggplot2::ggplot(mapping = ggplot2::aes(x = x, y = y, colour = Country)) +
  ggplot2::geom_line() +
  ggplot2::facet_grid(rows = ggplot2::vars(Country),
                      cols = ggplot2::vars(EorX))
p

I find the figure quite ugly:

Gray background? Really? Graphs should be made with the least amount of ink. (See Edward Tufte.) Too much ink spilt for the background.
Dark gray background for the facet labels? Again, too much ink is allocated to non-data elements.
Tick marks outside of the plot? All elements of a graph should point toward the data, not away from it. Tick marks outside point away from the data. Tick marks inside point toward the data and are preferred.
Grid lines? They put the viewer in jail.

To improve the appearance of the graph, use xy_theme().

p + MKHthemes::xy_theme()

By default, xy_theme()

eliminates the background colour to reduce the amount of ink in the plot,
adds inward-pointing tick marks to point toward the data,
provides a thin gray border around the graphs to frame the data,
sets gray text for the border elements to push them to the visual background, and
enables easy fine-tuning of many esoteric settings in the unlikely event that you disagree with any of the above.

Adjustments

xy_theme() provides several arguments that enable easy adjustments of graphical parameters, as shown in the following examples.

# Change font size. Default is 12 points.
p + MKHthemes::xy_theme(font_size = 8)

# Change font family. Default is "", a sans-serif font.
p + MKHthemes::xy_theme(font_family = "Times New Roman")

# Change size of all non-axis-title fonts.
p + MKHthemes::xy_theme(font_size_scale = 0.4)

# Adjust tick length in points. Default is -0.3*font_size.
# Negative values are strongly recommended,
# because they point the ticks inward.
p + MKHthemes::xy_theme(tick_length = -7)

# Adjust spacing between axis values and the border in points.
# Defaults are 0.2*font_size.
p + MKHthemes::xy_theme(x_axis_labels_spacing = -5,
                        y_axis_labels_spacing = 20)

# Change facet label distance from the graph in points.
# Defaults are 0.2*font_size.
p + MKHthemes::xy_theme(col_facet_labels_spacing = -3,
                        row_facet_labels_spacing = 20)

# Change border and label colour. Default is "gray50".
p + MKHthemes::xy_theme(border_and_label_colour = "red")

`MKHthemes` and `microtype`

Note that xy_theme() scales fonts to arbitrary precision. If you use MKHthemes with knitr within \(\LaTeX\), you may need to disable font scaling by the microtype package to avoid errors on Windows machines. We have found the following code helpful.

\usepackage{microtype}
\microtypesetup{expansion=false}

Conclusion
